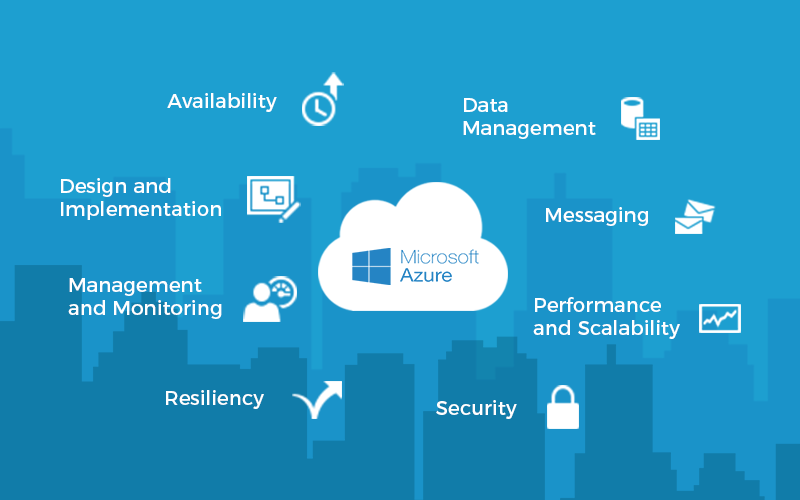

Cloud computing has revolutionized how we design, deploy, and manage applications. However, distributed systems in the cloud come with unique challenges—scalability, security, reliability, and efficient data management. To address these challenges, architects and developers rely on cloud design patterns, proven solutions to recurring problems. In this blog post, we’ll dive deep into the core cloud design patterns, categorized into five critical groups, and explore how they empower organizations to build robust cloud-native systems.

1. Data Management Patterns: Taming Distributed Data

In cloud environments, data is often distributed across regions, servers, and services to ensure performance and availability. Managing this data efficiently is crucial.

Key Patterns:

  • Sharding:
    Split large databases into smaller, manageable pieces (shards) based on criteria like customer regions or product categories.
    Example: An e-commerce platform shards its order database by geographic region to reduce latency and comply with data sovereignty laws.

  • Index Table:
    Create secondary indexes to speed up queries on non-primary key fields.
    Example: A social media app uses index tables to quickly retrieve posts by hashtags or user IDs.

  • CQRS (Command Query Responsibility Segregation):
    Separate read and write operations to optimize performance.
    Example: A banking app uses CQRS to handle high-frequency transaction writes (commands) separately from read-heavy account balance queries.

Why It Matters: Data management patterns ensure consistency, reduce latency, and enable horizontal scaling in distributed systems.

2. Design and Implementation Patterns: Building for Maintainability

Well-structured applications are easier to maintain, scale, and reuse. These patterns focus on architectural coherence and flexibility.

Key Patterns:

  • Strangler Fig:
    Incrementally migrate legacy systems to the cloud by replacing functionalities piece by piece.
    Example: A retail company slowly migrates its monolithic inventory system to microservices, routing new features to the cloud while phasing out old components.

  • Sidecar:
    Attach helper components (e.g., logging, monitoring) to a primary service without altering its code.
    Example: A Kubernetes pod uses a sidecar container to handle SSL termination for the main application container.

  • Backends for Frontends (BFF):
    Create dedicated backend services tailored to specific client interfaces (e.g., mobile, web).
    Example: A streaming service uses a BFF pattern to optimize API responses for mobile apps by aggregating only essential data.

Why It Matters: These patterns decouple components, simplify upgrades, and align architecture with business needs.

3. Messaging Patterns: Enabling Scalable Communication

Distributed systems rely on asynchronous communication to stay loosely coupled and resilient.

Key Patterns:

  • Publisher/Subscriber (Pub/Sub):
    Decouple producers and consumers of messages using a broker (e.g., Apache Kafka, AWS SNS/SQS).
    Example: A ride-sharing app uses Pub/Sub to notify drivers of new ride requests without direct coupling to the passenger app.

  • Priority Queue:
    Process high-priority tasks first to meet SLAs.
    Example: A healthcare platform prioritizes emergency patient data over routine check-up notifications.

  • Competing Consumers:
    Scale message processing by allowing multiple workers to consume from the same queue.
    Example: An e-commerce site uses competing consumers to handle Black Friday order spikes by parallelizing payment processing.

Why It Matters: Messaging patterns ensure systems remain responsive under load and handle failures gracefully.

4. Security Patterns: Safeguarding Cloud Systems

Security is non-negotiable in the cloud. These patterns protect data and systems from threats.

Key Patterns:

  • Federated Identity:
    Allow users to authenticate across multiple systems using a single identity provider (e.g., OAuth, SAML).
    Example: A SaaS platform integrates with Google Workspace to let employees sign in with their corporate Google accounts.

  • Gatekeeper:
    Isolate sensitive operations behind a dedicated security layer.
    Example: A fintech app routes all payment requests through a gatekeeper service that validates transactions and audits logs.

Why It Matters: Security patterns minimize attack surfaces, enforce compliance, and protect sensitive data.

5. Reliability Patterns: Ensuring Resilience

Cloud systems must withstand failures and maintain uptime.

Key Patterns:

  • Circuit Breaker:
    Prevent cascading failures by temporarily blocking requests to a failing service.
    Example: An e-commerce site uses a circuit breaker to stop calling a payment gateway after three consecutive timeouts, redirecting users to a cached checkout page.

  • Bulkhead:
    Isolate failures in one component from affecting others.
    Example: A microservices architecture uses bulkheads to ensure a memory leak in the recommendation service doesn’t crash the entire product catalog.

  • Retry & Throttling:
    Retry failed operations with backoff strategies and limit request rates to avoid overload.
    Example: A weather API throttles requests to 100 calls/minute per user and retries failed database queries with exponential backoff.

Why It Matters: Reliability patterns keep systems available and responsive, even during partial outages.

Putting It All Together: A Real-World Scenario

Imagine a global video streaming platform:

  • Data Management: Uses sharding to distribute user data across regions.
  • Design: Employs Strangler Fig to migrate from monolithic to microservices.
  • Messaging: Relies on Pub/Sub to notify users about new content releases.
  • Security: Implements Federated Identity for seamless logins via social media accounts.
  • Reliability: Uses Circuit Breakers to handle traffic spikes during live sports events.

Conclusion

Cloud design patterns are the building blocks of modern, resilient architectures. By strategically applying patterns like CQRS, Sidecar, Pub/Sub, Federated Identity, and Circuit Breakers, teams can tackle scalability, security, and reliability challenges head-on. The key is to understand your system’s requirements, start small, and iterate—because in the cloud, the right pattern isn’t just a solution; it’s a pathway to innovation.

Further Reading: Explore platforms like Microsoft’s Azure Architecture Center or AWS Well-Architected Framework for deeper insights into these patterns.

Cheers,

Sim
